PET Bottle Carbonated Liquid Filling Machine 2000ml Soda Energy Drinks

Name: PET Bottle Carbonated Liquid Filling Machine 2000ml Soda Energy Drinks
Brand: Sunswell
Price: 25000 USD

China PET Bottle Carbonated Liquid Filling Machine 2000ml Soda Energy Drinks wholesale

Brand Name : Sunswell

Model Number : DXGF

Certification : ISO,CE

Place of Origin : China

MOQ : 1 Set

Price : USD 25000 per Set

Payment Terms : L/C, T/T

Supply Ability : 50 Set/Sets per Year

Delivery Time : 60 days

Packaging Details : wood case & carton packaging

Packaging Type : CANS, Bottles

Voltage : 220V/380V/customized, 50Hz/60Hz

Weight : 10000 KG

Key Selling Points : Easy to Operate

Filling Material : Water, Energy Drink, Carbonated Soft Drink

Warranty of core components : 1 Year

Filling Volumen : 200ml-2000ml

Structure : Rotary Rinser-Filler-Capper 3-in-1

Capacity : 3000BPH-36000BPH

Material : SUS 304/316L

Applicable Industries : Food & Beverage Factory

Application : Beverage

Packaging Material : Plastic

Dimension(L*W*H) : 5150*3820*2700mm

Machinery Capacity : 8000BPH, 12000BPH, 6000BPH, 20000BPH, 16000BPH

Marketing Type : Ordinary Product

Core Components : Motor, Pump, PLC

Filling Accurancy : ±5%

Bottle Type : PET Plastic Bottle

Dosing Device : Surface Type

Filling Principle : Isobaric filling

Filling Valve Head : Multi-head

Contact Now

PET Bottle Carbonated Liquid Filling Machine 2000ml Soda Energy Drinks

Products Description

Energy Drink Filling Machine

Energy drinks filler 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the
 requirement of carbonated soft drinks and soda water, on the basis of introducing, digesting and absorbing advanced technology from Germany and Italy.
 The machine is a full-automatic multiple-function washing, filling and capping unit. It is used in washing. filling and sealing
 all kinds of non-air drinks such as carbonated beverage ,fruit juice, oil & vinegar,wine,fruit wine, mineral water and pure
 water. The line has features of unique design,new style, complete functions,multi-purpose, convenient in operation, beautiful construction, high automaticity. It is the best filling equipment in China.

1. Bottle infeed

Air conveyor, star-wheel cooperate input the bottle, the suitable bottle is 250ml-2000ml.

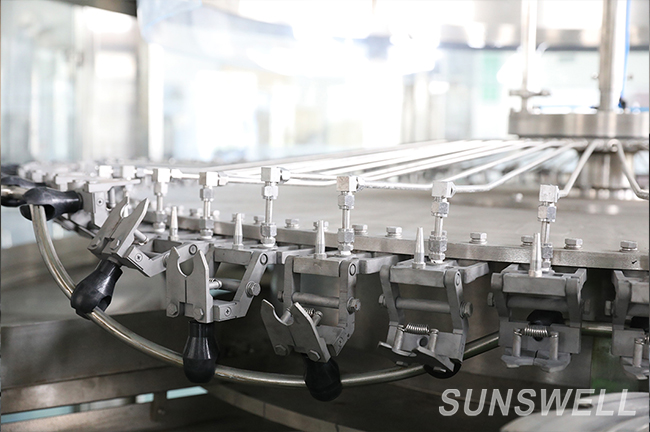

2.Rinser

Carbonated drinks filling machine is rotary washing machine

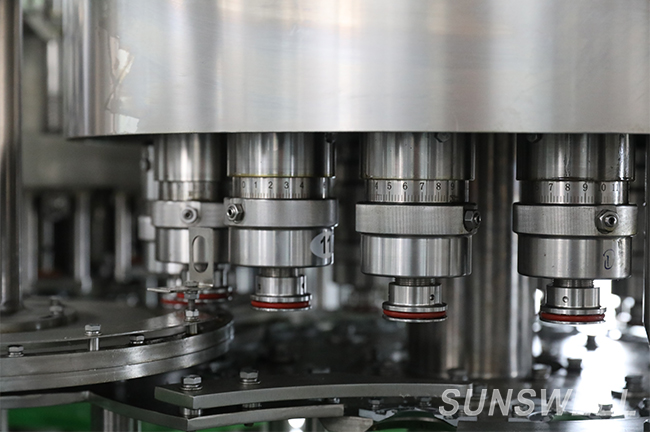

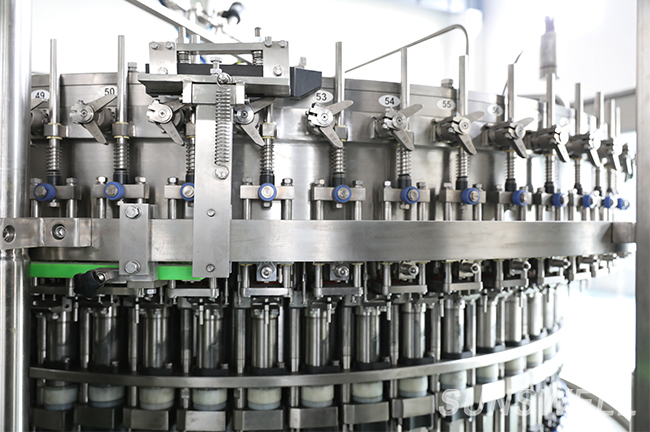

4. Filler

Filling valve use isobar machinery valve, High speed and big flow, the high accuracy filling valve, filling speed fast, the
 liquid level is stable.

5. Capper

The bottle into the click wheel through the transition card bottleneck Capping Machine.

Model	Filling Heads	Capacity 500ml	Bottle Size	Power	Dimension(mm)	Weight(KG)
DXGF24-24-6	24	5000BPH	200-2000ml	2.2kw	3290×2780×2700	5500
DXGF24-32-6	32	9000BPH	200-2000ml	3kw	2900×2580×2650	4800
DXGF40-40-10	40	12000BPH	200-2000ml	7.5kw	4420×3255×2700	7800
DXGF50-50-12	50	16000BPH	200-2000ml	5.5kw	5150×3820×2700	10000
DXGF72-72-15	72	24000BPH	200-2000ml	7.5kw	6253×4773×2700	8000
DXGF60-80-18	80	20000BPH	200-2000ml	11kw	6750×4835×2700	9500
DXGF84-84-20	84	36000BPH	200-2000ml	11kw	6750×4835×2700	9500
